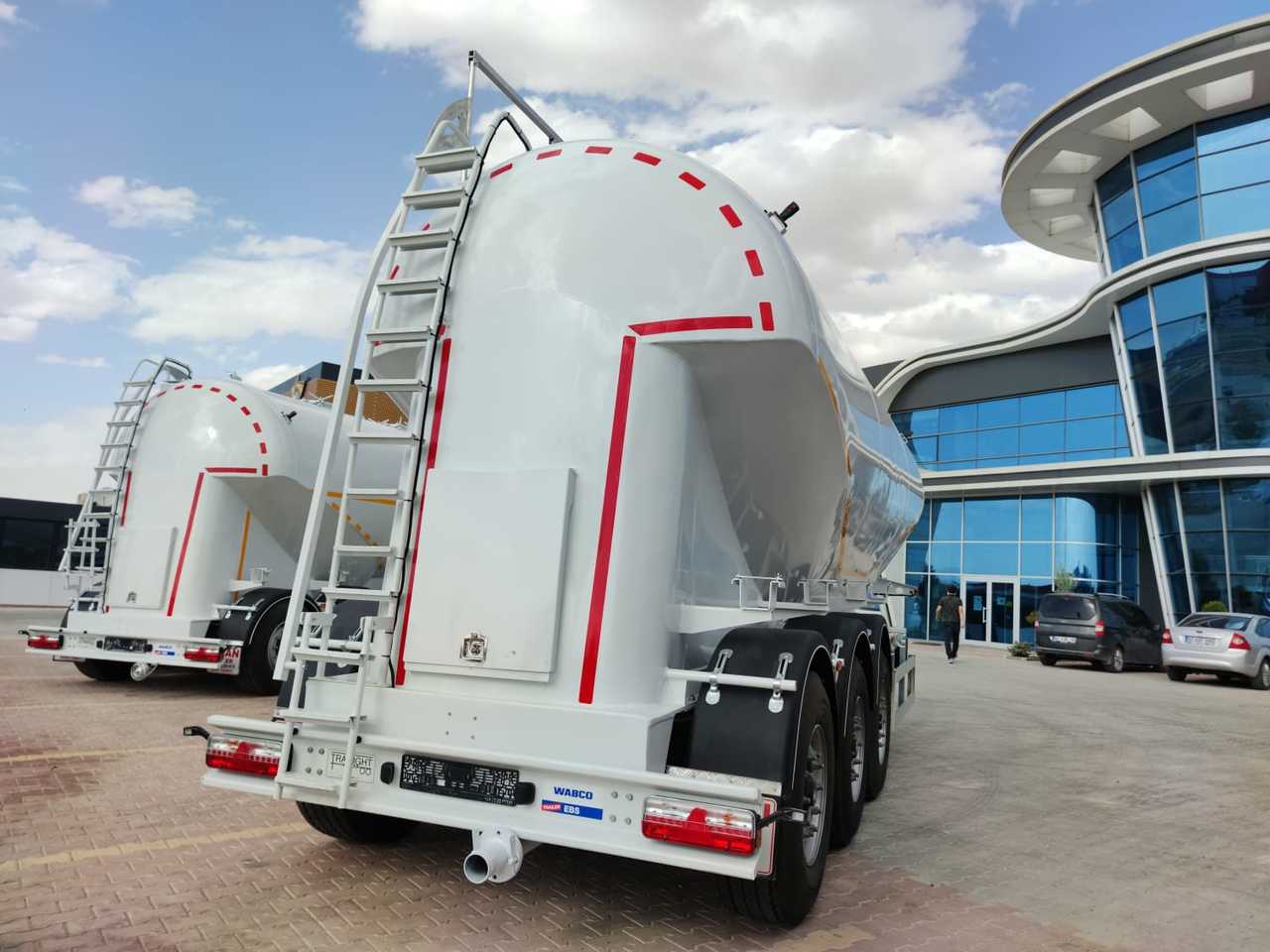

Semirremolque silo nuevo para transporte de cemento SINAN TANKER TRAILER SILO BULK FLOUR AND CEMENT TANKER TRAILER [ Copy ] [ Copy ]

Body

Double Funnel type , alloy aluminium 5182 series H111 Quality , min 5 mm thickness , trible W section accordingto EEC norms the body longitudinal direction welded and connection to the saddle is strength .

Compartments

45 degrees , 2 units funnel with DIN 780 bottom funnel with easy clean out cover

Menhole cover

2 unit , DIN 500 norms , according to 3 bar test pressure design cover .

Aeration Kit

For each funnel 2 units aluminium Fluidizer aeration system operated with air . Double Port Aeration for bottom discharge funnel .

Pneumatic Valve

DIN 100 norms for each funnel 2 units pneumatic operated PINC valve

Controle valve

Body

Double Funnel type , alloy aluminium 5182 series H111 Quality , min 5 mm thickness , trible W section accordingto EEC norms the body longitudinal direction welded and connection to the saddle is strength .

Compartments

45 degrees , 2 units funnel with DIN 780 bottom funnel with easy clean out cover

Menhole cover

2 unit , DIN 500 norms , according to 3 bar test pressure design cover .

Aeration Kit

For each funnel 2 units aluminium Fluidizer aeration system operated with air . Double Port Aeration for bottom discharge funnel .

Pneumatic Valve

DIN 100 norms for each funnel 2 units pneumatic operated PINC valve

Dicharge system

Cement bulk carrier discharge from each DIN 780 funnel with pneumatic pinç ako valve

Aeration

Tank Internal Inlet Valve

Tank Emegency Evacuaution

Collector Pipe Evacuation

Air Ventilation Valve ( 4 units)

Evacuation Speed Jet Valve ( 2 units) rear and back

Safety Valve ( according to 2 bar working pressure )

Tank Pressure valve manometer ( 2 units)

Pneumatic pressure valve AKO
