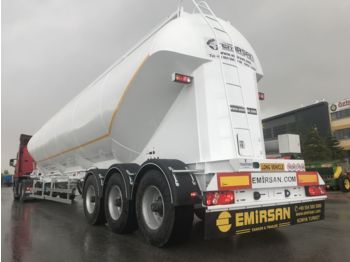

Cisterna semirremolque nuevo para transporte de silos EMIRSAN W Type Bulker

Tanker walls: 5 mm Compartment walls: 5 mm End walls: 5 mm Fillers: 3 Compressor

---

Price starting from 22000 USD Cement Bulker Trailer W Type Technical Details DIMENSIONS Width: 2.550 mm. Height: 3.900 mm. Axle Distance: 1.310 mm. Empty Weight: 5.400 ~ 8.700 kg. ± %5 (Shows difference depending on equipments chosen) King-Pin Height (Unloaded): 1.220 ~ 1450 mm suitable for 4×2 and 6×4 and 6×6 tractor units CAPACITY Volume: 22 – to – 60 m³ Operating Pressure: 2 bars Test Pressure: 3 bars BODY High strength steel material, In bulk trailer production sector, for the special body structure jointless, monolithic sheets which join at the inner part of body bottom center chassis and unique body structure produced via longest weld seam technology, having least number of joints (T), safe, smooth straight surfaced, At chassis joints, total construction designed to increase body strength, to decrease the effect of stress, is acquired by certified expert welders with synergic welding machines in perfect harmony, FILLING AND DISCHARGING LINE Manhole lids and filling from top From each feed funnel, fast, corrosion decreasing, not having blockage risk, easy to intervene in, flanged, bolt connected, direct discharging line with backside output by driving direction via DN 200 bottom output piping, and cam lock connected lid at output end Welded joints strengthened with foreign reinforcement against corrosion, AIR COMPRESSOR AND CONNECTION Optionally preffered compressor, Safe compressor connection platform with special wedge absorbing the vibration generated during the operation of the compressor, integrated with plate table, Chassis: Strengthened “I” section centre members are welded automatically by submerged welding machine. They are welded between 120/14 mm bottom or top steel plate and 5 mm hub plate. Axles: Turkish Brand, BPW or SAF 3 x 9,12,14,16 Ton axles brake drum or disc There are brake shoes and heavy brake levers suitable for TSE norms air-suspension-axle-setmechanical-suspension-axle-setbogie-suspension-axle-set Suspensions ; It is supplied with Turkish brand of 6 pcs of air cushion with Z leaf spring or mechanical leaf spring suspension with 12 mm x12 pcs of layer with 100 mm width Brake System ; Wabco brand ABS or EBS braking system can be used or manuel braking system can be used. Brake Chambers ; 1 Axles with T 30/30 emergency brake chamber,2 axles with T 30 service brake chambers Electrical system ; 2×7 pin sockets – 24V, lights accord to standard in SAE rear stop lamps, side marker lamps, brake safety warning lamps and signal light fitted at the rear 2 tail & stop combined lamps (red) 2 turn signal combined lamps (orange) 1 license lamp (white) Tires; 385/65 R22,5 or 12 R22,5 or 13 R22,5 or 315/80 R22,5 Bridgestone, Pirelli, Goodyear, Continental or any other brand that customer demand Rims; 11.75 R22.5 Jantsa-Jantas Brand King Pin ; Jost or equivelent Turkish brand OMS DIN 74080 standards 2’’ or 3,5’’ king pin detachable from below made by SAE standards 8 bolt type. With E certificate. Landing Gear ; Jost or equivelent Turkish brand front Jack feet are telescopic,parallel working,double speed jointed with wide shoes static 50 tons, dynamic 25 tons capacity Painting ; Before the painting, all surface is cleaned and sand blasted carefully PPG brand primery Epoxy gray is used for first protecting. PPG brand paint 2 Times of high quality paints are applied on trailer Thickness of painting checked by electronic devices The color of trailer is selected by our customer according to RAL codes STANDARD ACCESSORIES – 2 or 3 pcs of manhole caps that have single cover and having durability for test pressure – 2 pcs air pressure gauge – Unloading air funnel hose system which provides liquidity – 1 security valve set to 2.5 bars – 1 spherical jet air valve that accelerates unloading process – 1 under lap tool box (on body) – 1 non slip floor, walking platform – 1 ladder (climbed from behind) – 2 PVC pipes to carry unloading hoses – Multi-piece plastic fenders that covers trailing axle tires – 1 plate tool box – Control Panel (Mob, air clock, access ramp lever) – Plastic water tank – Roller spare tire conveyor – Mounting and mounting space OPTIONAL SPECIFICATIONS – Semi-Trailer body domex plate – Magirus Deutz 4 cc diesel engine – European axle shaft group and all kind of equipments – Aluminum rims – Axle shaft elevator addition – Fire extinguisher closet and fire extinguisher tube – Tire mark according to request – RAL color codes according to request
